SEAM HEATER

Brand: ARS - Asphalt Reheat Systems

Product Code:

Availability:In stock

$23,685.00 23,685.00

Qty

This item is not available for purchase online.

Please contact us to arrange purchasing this item.

Call us at 608-298-9301 or visit our Contact Us page.

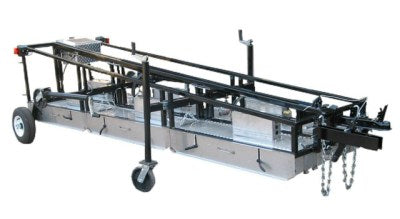

The standard Seam Heater can heat an area of one foot wide by 16 feet long when opened to its operating position. It has four separate, four-foot heating sections that can be turned on and off independent from one another.

This unit also has a versatile design that allows it to be attached to a variety of pavers on either side. This unit is also available with the optional automatic thermal output control, which has the capability of maintaining a joint temperature of 250 degrees at paving speeds up to 25 feet per minute on an average day.

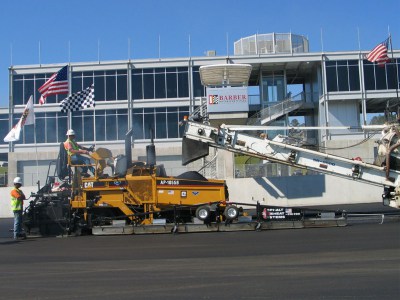

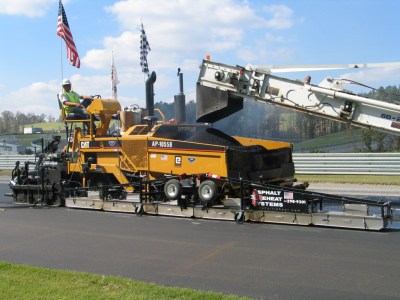

This unit is typically used during the paving process to heat a previously laid asphalt mat’s edge while the paver lays its adjoining hot mix. Projects they are being used on include; highways, roads, parking lots, night work, airport taxiway, and runways.

FULL SPECS

Heating Area: 16 Linear FT
Dimensions: L= 112" (transport) 214” (operating) W= 49" (transport) 33” (operating) H= 41" (transport) 33” (operating)
Weight: 855 lbs.
Options: Manual (battery-paver-motion controls) Automatic (same as manual plus automatic temperature regulation & individual box controls)
Heating Time: Avg. 25 FT/Min @ 250°F
Fuel Consumption: At least 2 hrs per 4 gallons of LP
Usage: Reheating cold paving joints, stamping extended borders, blending uneven seams.

Heater Features

  • One step operation
  • Efficient fuel consumption
  • Short heating times
  • Light weight design
  • Stainless steel construction
  • Low maintenance
  • Low-power requirements
  • Built-in battery charger
